T24-ACMi – transmission / broadcast module

especially suitable for sending data within the T24 system

for sending the received data of the modular telemetry system T24

The T24 Wireless Telemetry Sensor System is a modular wireless solution for industrial sensing applications.

High-precision, high-quality measurements are made possible with simple but powerful configuration and monitoring software.

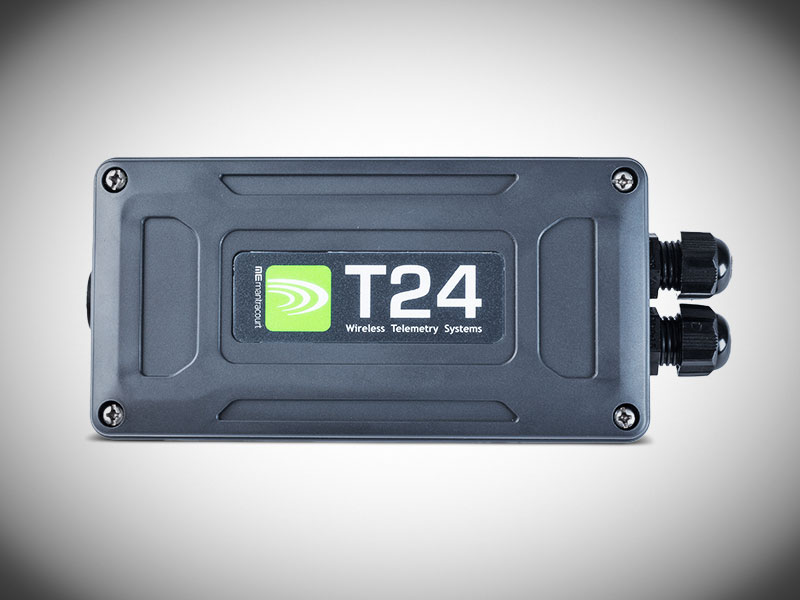

Force and strain transmitter module mounted in large weatherproof housing with battery holder for two D alkaline batteries. Can also be operated with an external supply voltage.

Although all T24 modules are actually receivers, as well as transmitters, they are mainly used either as transmitters or as receivers. Therefore, they are referred to as transmitters and receivers.
The T24 system is designed so that the transmitters can send out messages at a user-defined speed. The receivers can then analyse, display or perform other actions on this data depending on their function.

A PC and base station are only needed to configure the modules, although they can be part of a data collection system.
Once configured, the T24 modules operate autonomously and only minimal control over the transmitter or receiver modules is required, such as sleeping or waking up.

Two free software setups are available for Windows PC.

  • T24 Toolkit is used to configure and calibrate the modular telemetry system
  • T24 Log100 is the logging and visualisation software for monitoring and data acquisition

Features

  • easy operation via software
  • Supports multiple transmission technologies
  • switches off automatically
  • Robust construction
  • Housing with IP 67 protection for industrial applications
Compare this Product

Downloads

T24 – Comparison Transmitter
User Manual T24-Series


Installation and use

Electrical connection / data transmission

After installing the free software (toolkit) :

Immediate access to measurement data, which can be configured, logged and visualised. Compatible with all force and strain sensors and the entire t24 series

Electrical connection / configuration

After installing the free software (Log100) :

For use with up to 100 T24 series transducers.
Display, log and browse data as required, set visual and audible alarms. Graphic and mapping functions. Allows remote viewing via web server.

Technical specifications

(K) Electrical connection

without cable / wireless
