Pressure Force Sensor X-141

particularly suitable for universal use in industrial force monitoring systems

For accurate measurement of compressive forces

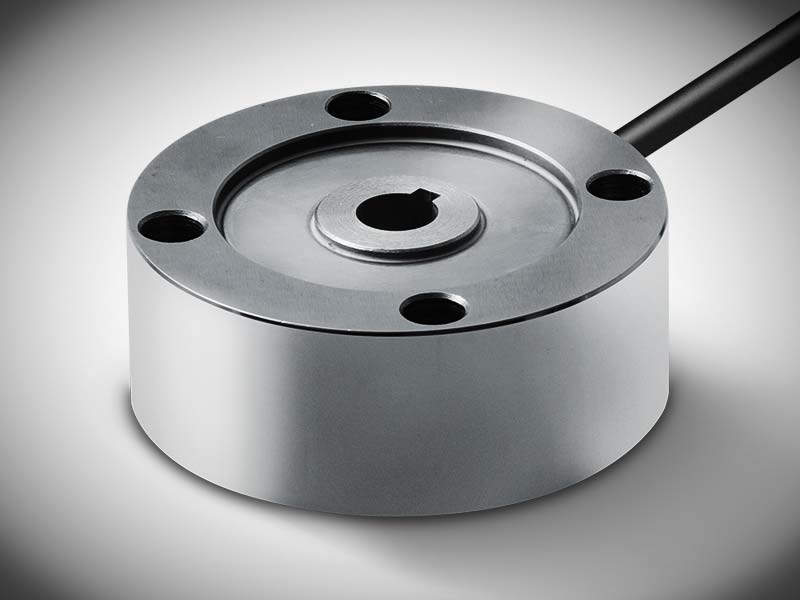

The X-141 can be used for static and dynamic applications. For this purpose, a through hole is provided through which both suspended loads and compressive forces can be applied via a force application knob. The Force Transducer measures precisely in the force range of 0.5 – 20 kN and has a diameter of 78 mm.

The X-141 can be easily mounted via the four continuous mounting holes. The solid steel housing and the sealed design according to IP65 guarantee problem-free operation of the strain gauge force sensor, even under difficult environmental conditions.

Properties

  • With four fixing holes
  • With through hole for force transmission
  • Encapsulated version IP65
  • Measuring ranges from 0.5 kN to 20 kN available

Installation and deployment

Electrical connection

The Force Sensors from X-Sensors are based on a strain gauge full bridge with strain gauges. The output signal for this Sensor is specified in mV/V. Various input modules of controllers already allow the direct connection of Force Sensors with strain gauge full bridge.

In addition, measuring Amplifiers with voltage output (0-10 V) and current output (4-20 mA) are available, which amplify the strain gauge full bridges accordingly. The measuring Amplifiers are available in a robust field housing, for DIN rail mounting or in an inline housing.

Mechanical connection / construction

The advantages of the compression Force Sensors are the easy handling. The force acting centrically from above is measured. The various Force Sensors are versatile and are used in the areas of material testing machines, hardness testers, measurement of compressive forces, press-in force control and as Load Cells.

The mounting of the strain gauge Force Sensors is uncomplicated, either via the thread or via the prefabricated holes, depending on the model.

Technical specifications

measuring range

, , , , , ,

Design / force application

direction of force

Feature

(K) Measuring range (in kN)

0.5, 1, 10, 2, 20, 3, 5

(K) Output signal

2.0 mV/V

(K) Input sensitivity (in mV/V)

2.0

(K) Electrical connection

M12 – 4pol. plug, open strands

(K) Cable length

10.0, 3.0

(K) Design

through hole
